Advantages:
Most of the small spot welders on the market are second-hand MOS tubes obtained by dismantling the machine. The quality cannot be guaranteed. The MOS tubes of this kind of spot welder oftens explode, the welding is not firm, and it cannot even be used at all.

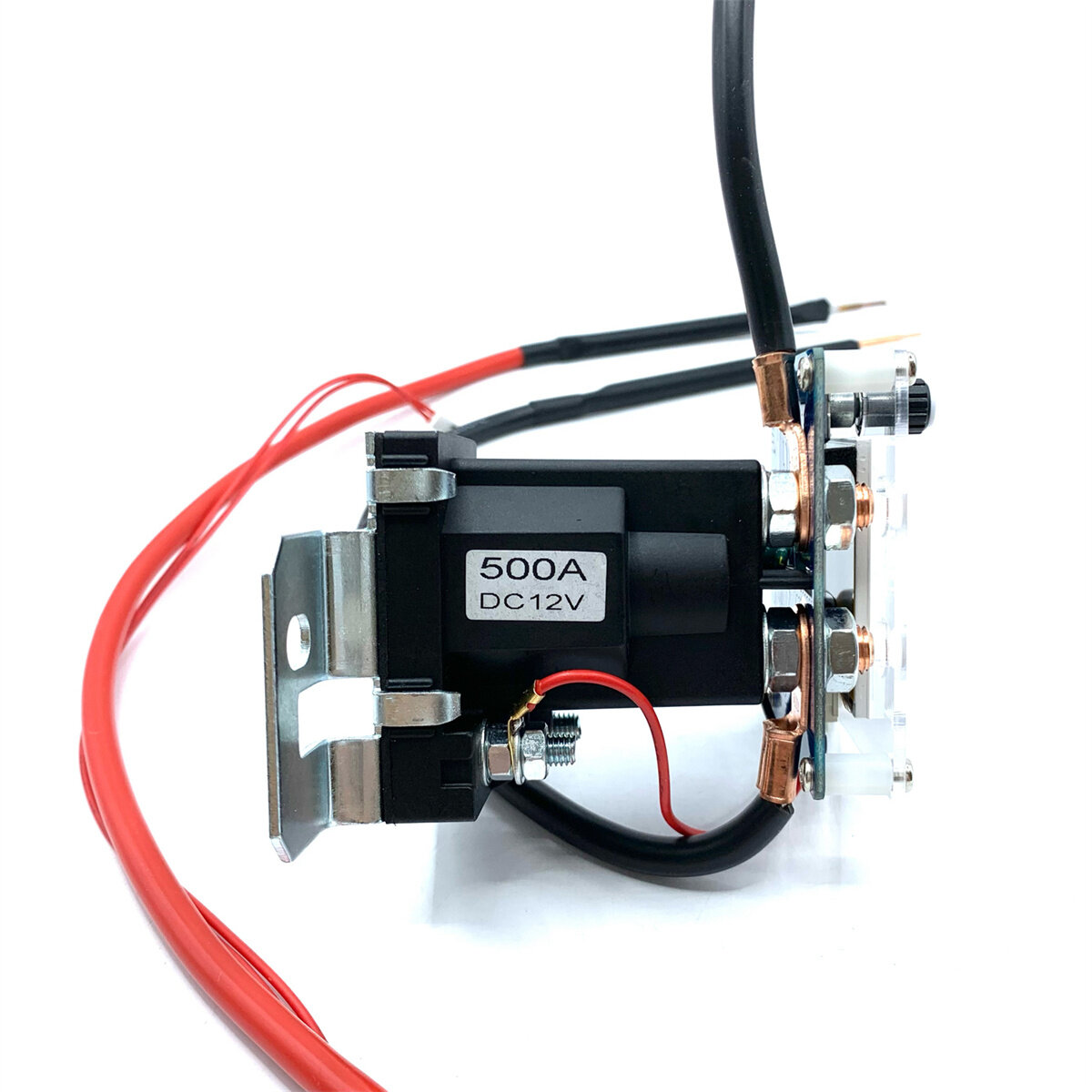

Our spot welder does not use MOS tubes, but innovatively uses high-power relays, so that the instantaneous current of the relay can reach 1500A-2000A. Not only is the quality stable, but the welding effect is excellent!

Specifications:
Weight: 350g
Applicable nickel sheet specifications: 0.1-0.3mm
Gear: Dual pulse adjustable
Material: Metal + PC
Solder pen specifications: 8AWG silicone soft wire
Packing size: about 150 * 100mm/5.9*3.9in

Features:
1. This product is a double-pulse adjustable spot welder using high-power relays
2. The spot welder welds firmly, does not explode, is stable and reliable, and is light and long-lasting.
3. The welding equipment is made of metal and PC materials, with high quality and durability.

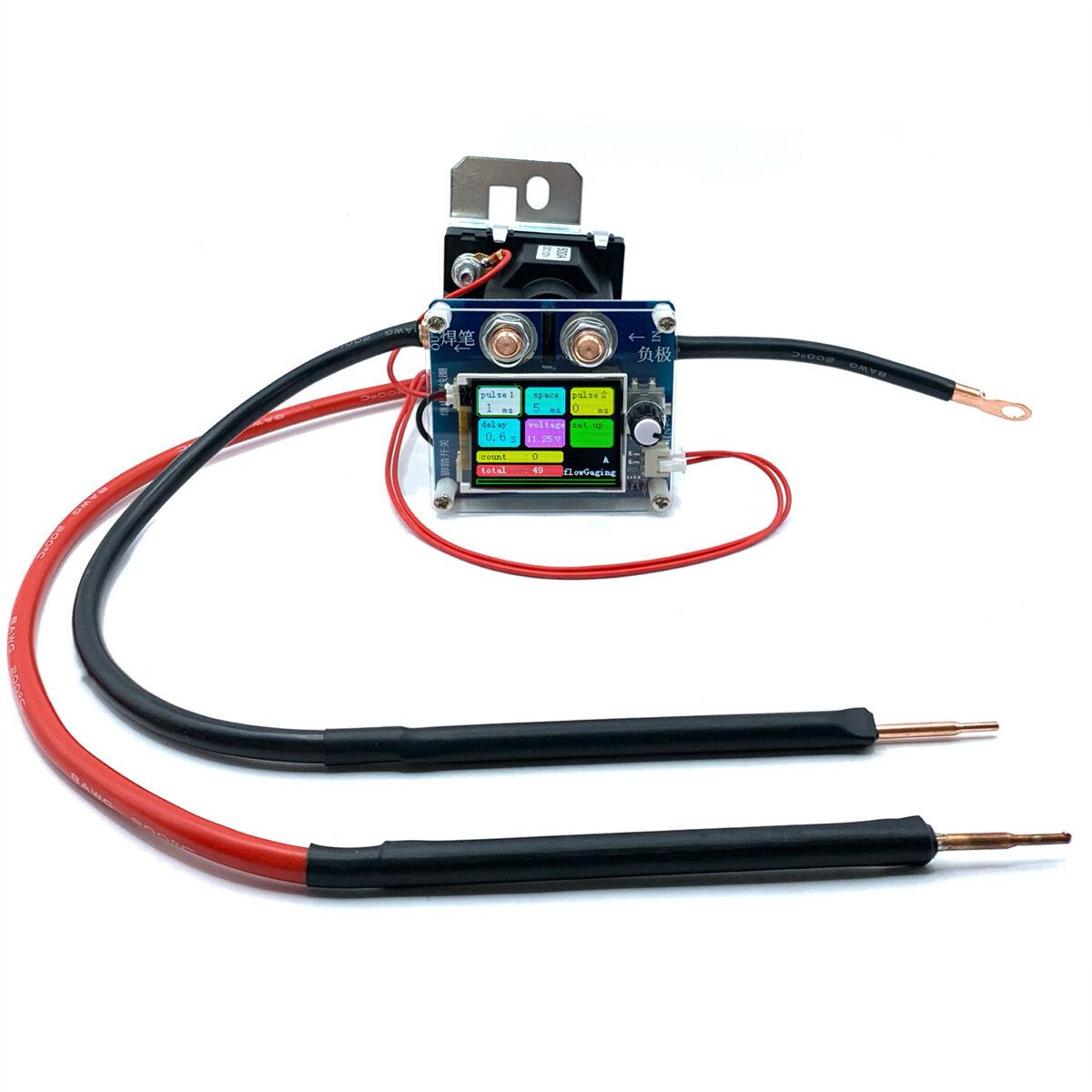

4. It uses a large color high-definition screen with clear display.
5. Use a rotatable encoder for operation, which is simple and controllable.

Function:
① Pulse 1: 1u201320 milliseconds adjustable
② Interval: 0u201399 milliseconds adjustable
③ Pulse 2: 0u201320 milliseconds adjustable
u2463 Automatic spot welding: 0.1u20135 seconds adjustable; when automatically adjusted to 0.00 seconds, it is in manual mode
u2464 Input voltage: 5u201315v
u2465 Buzzer sound on/off
u2466 Historical spot welding record
u2467 Screen rotation angle 0u2013180° adjustable
u2468 Automatic shutdown function, 5u201360 minutes adjustable
u2469 System supports Chinese and English switching


Operation Instructions:
1. How to choose the right pulse for spot welding?
Since the power supply of the spot welding machine needs to be prepared by the user, the capacity or internal resistance and discharge rate of the battery or battery equipped by each user are different, and the discharge current is also different, which will result in different discharge currents and different spot welding capabilities. Therefore, there is no fixed pulse parameter for users as a reference. When using it, we should follow the pulse from small to large to adjust, and perform spot welding tests while adjusting until the spot welding is solid to the nickel sheet!
2. How to choose the power supply?
① SupercapacitorFarad capacitor: The internal resistance of a single capacitor is required to be less than 0.3 milliohms. It can be powered by 2 strings of 2.7V3000F in series with a 5.4v capacitor, or 3 strings of supercapacitors. When the voltage of 3 strings of capacitors is 8.2v, the output current is about 1800A. 3 strings or 4 strings of supercapacitors are more suitable for power supply.
② 12v lead-acid battery: 12v 20Ah-120Ah battery can be used for power supply. The newer the battery, the better the output current. The larger the battery capacity, the better the output current!
③ Power lithium batterymodel aircraft battery: 2 strings of 7.4v-3 strings of 11.1v high-rate lithium batteries can be used for power supply. The internal resistance of a single cell should be less than 1 milliohm. Batteries with a capacity range of 12V 3300 mAh-12V 8000 mAh are more suitable

Precautions:
The positive and negative poles of the spot welding machine input must not be connected in reverse! Otherwise, there will be a risk of damaging the circuit!

Package Include:

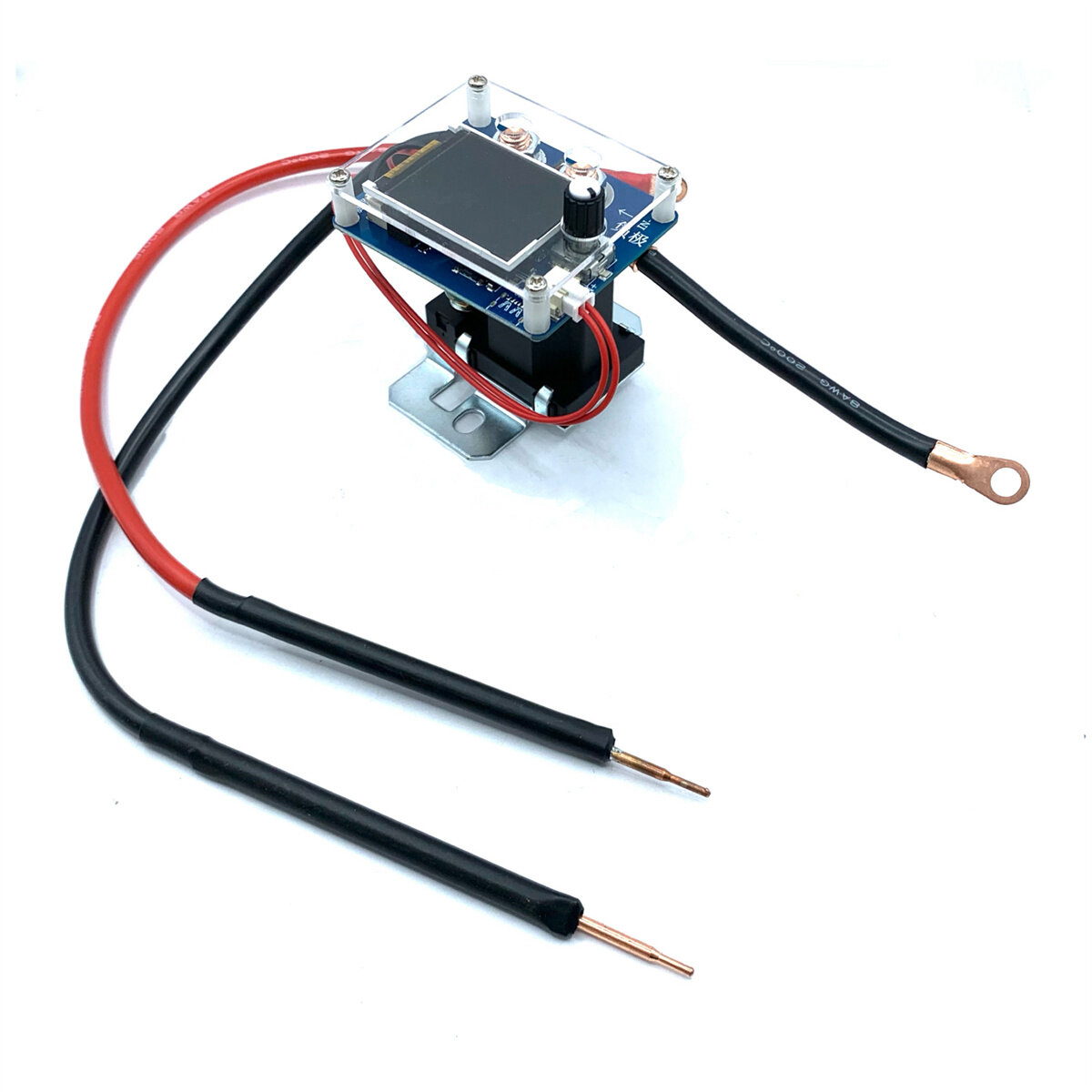

1x Spot Welding Machine Host
1x Pair of Spot Welding Pens
